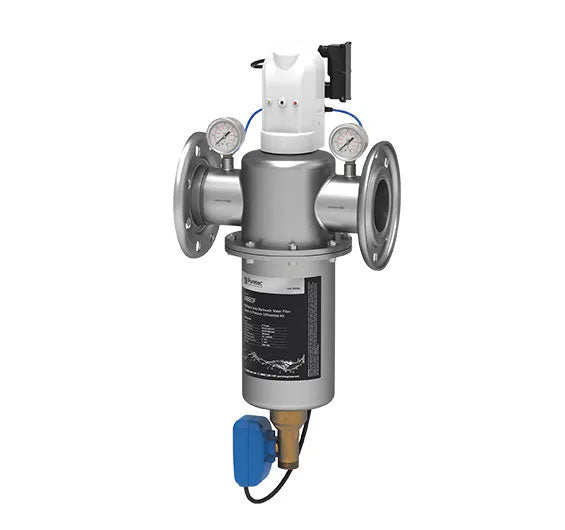

Puretec SS Auto Backwashing Screen Filter, 100 um with Pressure Differential kit

The IAB Series has been specifically designed for the filtration of cold drinking water predominately in civil applications but can also be used for the protection of water distribution lines in technological applications such as heating and cooling systems, industrial installations etc. Impurities such as sand, rust flakes, lime deposits and coarse material can damage the water distribution lines and appliances (pipes, valves, mixers, faucets, washing machines, etc.) the installation of a protection filter is the most simple and efficient alternative to avoid costly maintenance.

Designed for mains and rainwater applications. Puretec IAB is an automatic self-cleaning filter, robust and compact, with a brushing system for the cleaning of the filter screen and a discharge valve for dirt. These filters are fitted with pressure gauges for monitoring any pressure drops across the filter screen.

• Program backwash intervals from hours to days 12/24/36/48 hours.
• Single touch button manual override to backwash on demand at any time.
• Stainless steel net filtering surface is resistant to mechanical shock and pressure gradients.
• Cleaning brushes are equipped with Silver to inhibit bacterial growth.
• Simple initial set up.
• Set and forget cycles.
• The stainless steel body means it’s tough and resistant to mechanical shear stresses.
• High strength Trogamid discharge valve.
• 100um filter screen.
• Two dry contacts for external equipment such as monitoring, solenoids etc.
• Includes differential pressure switch.
• Twin pressure gauges to monitor pressure drop.
• Flanged connections.
• Equipped with a mechanical discharge solenoid valve.

SPECIFICATIONS

Ordering Code: IAB80F
Micron Rating: 100 micron*
Replacement Cartridge(s): IAB-SCN100
Flow Rate (ÞP = 0.2 bar): 40 m3/h (666 Lpm)
Flow Rate (ÞP = 0.5 bar): 54 m3/h (900 Lpm)
Min/Max Pressure: 150 - 1000 kPa
Cleaning Cycle Type: 12 - 24 - 36 - 48 hours
Cleaning Time - Water Consumption: 19 seconds - 6L
Min/Max Water Temperature: 5 - 30°C (protect from freezing)
Min/Max Ambient Temperature: 5 - 40°C (protect from freezing)
Connection Size: 3” flanged
Warranty: 1 year^

Ordering Code: IAB65F
Micron Rating: 100 micron*
Replacement Cartridge(s); IAB-SCN100
Flow Rate (ÞP = 0.2 bar): 35 m3/h (583 Lpm)
Flow Rate (ÞP = 0.5 bar): 49.6 m3/h (826 Lpm)
Min/Max Pressure: 150 - 1000 kPa
Cleaning Cycle Type: 12 - 24 - 36 - 48 hours
Cleaning Time - Water Consumption: 19 seconds - 6L
Min/Max Water Temperature: 5 - 30°C (protect from freezing)
Min/Max Ambient Temperature: 5 - 40°C (protect from freezing)
Connection Size: 2½” flanged
Warranty: 1 year^

*Micron rating is nominal. ^1 year replacement parts and labour. ˜If pressure exceeds max pressure, an approved pressure limiting device needs to be fitted. Note: Check local plumbing regulations as a specific kPa limit for the pressure limiting valve may be required (in particular, The Australian & New Zealand Plumbing Standards. Ref. AS/NZS 3500.1:2021, Clause 3.3.4). If water hammer is present, fit a hammer arrestor close to the source of the hammer.
