Puretec Maxi Plus Filter Housing

MaxiPlus Filter Housing

The Puretec filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housings allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10” and 20” lengths.

• High capacity filter housings.
• Features double O-ring seals for maximum durability.
• Ribbed design provides robust housing for years of trouble-free service.
• Compact and economical, ideal for duplex systems.
• Wide variety of cartridge replacements available.
• Internal and external use to suit different applications.
• UV stabilised.

SPECIFICATIONS

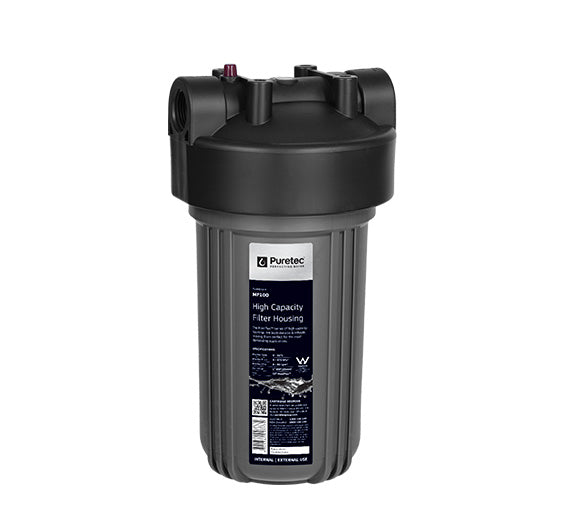

Ordering Code: MP100
Size: 10”
Min/Max Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875* kPa
Maximum Flow Rate: 80 Lpm
Connection: 1” (25 mm)
Warranty: 10 years^

Ordering Code: MP200
Size: 10”
Min/Max Temperature; 0 - 52°C
Min/Max Pressure: 0 - 875* kPa
Maximum Flow Rate: 85 Lpm
Connection: 1½” (40 mm)
Warranty: 10 years^

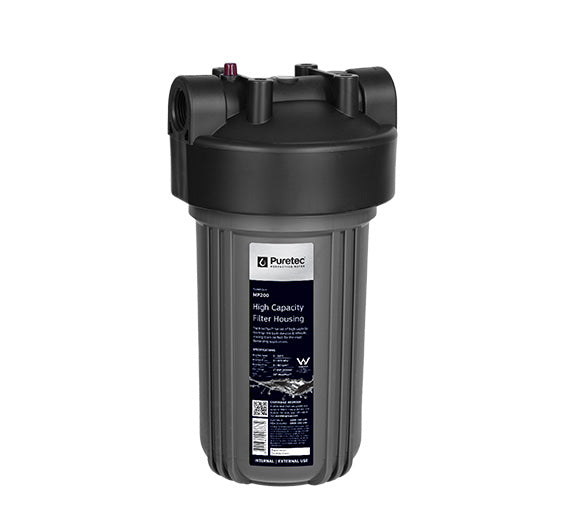

Ordering Code: MP200B
Size: 10"
Min/Max Ambient Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875* kPa
Min/Max Flow Rate: 85 Lpm
Connection: 1½” (40 mm)
Warranty: 10 years^

Ordering Code: MP300
Size: 20”
Min/Max Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875* kPa
Maximum Flow Rate: 160 Lpm
Connection: 1” (25 mm)
Warranty: 10 years^

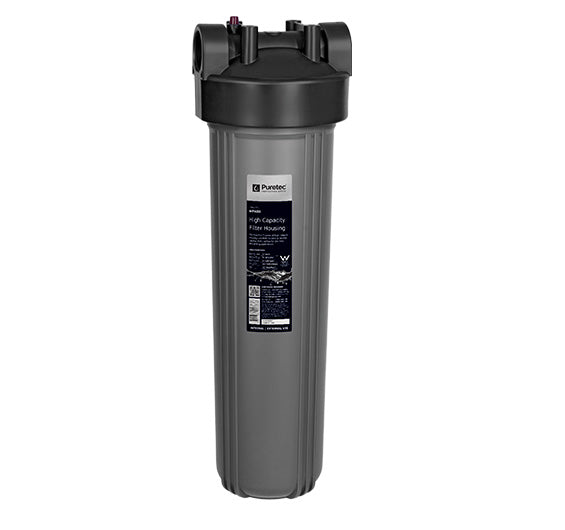

Ordering Code: MP400
Size: 20”
Min/Max Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875* kPa
Maximum Flow Rate: 180 Lpm
Connection: 1½” (40 mm)
Warranty: 10 years^

^10 year warranty is 1 year parts and labour plus 9 years parts only. Pressure + Temperature ratings mean housings must be protected from extremes above and below. This includes freezing, vacuum, overnight pressure creep + water hammer. * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).
