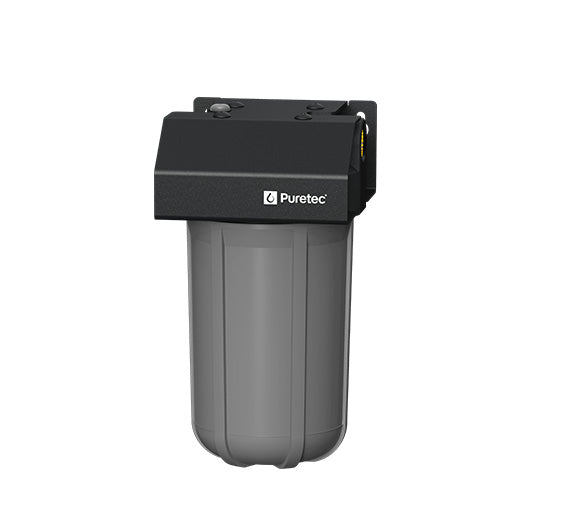

Puretec MPX100B Extra Heavy Duty Water Filtration Housing

Puretec MPX100B Extra Heavy Duty Water Filtration Housing

• 4.5” x 10”, 1" Connection, 80 Lpm Flow, 0 - 900˜ kPa

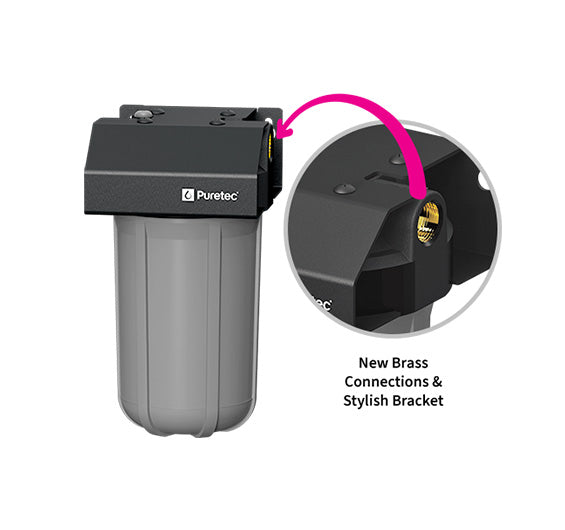

The Puretec MPX100B Series is an extra heavy-duty water filter system housing with brass inlet and outlet support, rust-proof and anti-flex aluminium bracket, with the peace of mind of Puretec’s 10-year gaurantee^.

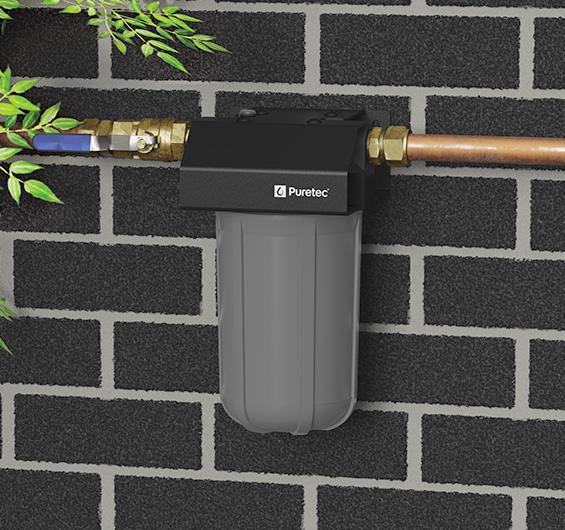

The MPX Series features the new Puretec registered bracket design. These brackets are aesthetically appealing complete with a modern matt black finish that looks great on the side of any house or building. The design however is not only about looks, the new registered design ensures the system is stronger and much more rigid. They are engineered using lightweight materials and feature easy mounting points.

The housing can be used in a wide variety of applications and is compatible with a wide range of water filter cartridges (sold separately). Select a cartridge that best suits your situation/water source. For cartridge selection advice contact us.

• New integrated rust-proof, anti-flex aluminium wall mount bracket.
• Peace of mind with the whole house or whole building filtration.
• Heavy-duty housings for reliable whole house protection.
• Low maintenance, no moving parts.
• No power required.
• Easy to install.
• Internal or external use.
• Wide variety of cartridges available (sold separately).
• 10-year warranty.

SPECIFICATIONS

Ordering Code: MPX100B
Size: 4.5” x 10”
Flow Rate: 80 Lpm
Inlet/Outlet Connection: 1” BSP
Min/Max Pressure: 0 - 900 kPa
Min/Max Temperature: 0 - 38°C (protect from freezing)
Warranty: 10 years

10 Year warranty is 1-year parts and labour, plus 9 years parts only.

Flow rate is dependent on the filter cartridge used. The application should be designed according to filter cartridge capabilities.

Note: Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).
