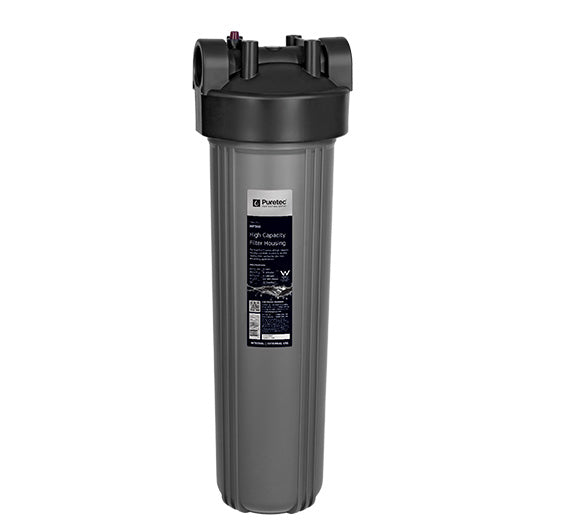

Puretec MP300B MaxiPlus Filter Housing Kit for Water Purification

Puretec MP300B MaxiPlus Filter Housing Kit for Water Purification

The Puretec MP300B filter housing kit offer the versatility to meet all of your large-capacity water purification needs, including high-flow and heavy sediment applications. The extra-large housings allow for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene.

Water Filter System Includes spanner & stainless steel mounting bracket.

• High capacity filter housings.
• Features double O-ring seals for maximum durability.
• Ribbed design provides robust housing for years of trouble-free service.
• Compact and economical, ideal for duplex systems.
• Wide variety of cartridge replacements available.
• Internal and external use to suit different applications.
• UV stabilised.

SPECIFICATIONS

Ordering Code: MP300B
Size: 20”
Min/Max Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875 kPa
Min/Max Flow Rate: 160 Lpm
Connection: 1” (25 mm)
Warranty: 10 years

10 year warranty is 1 year parts and labour plus 9 years parts only.

Pressure + Temperature ratings mean housings must be protected from extremes above and below.

This includes freezing, vacuum, overnight pressure creep + water hammer.

Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).
