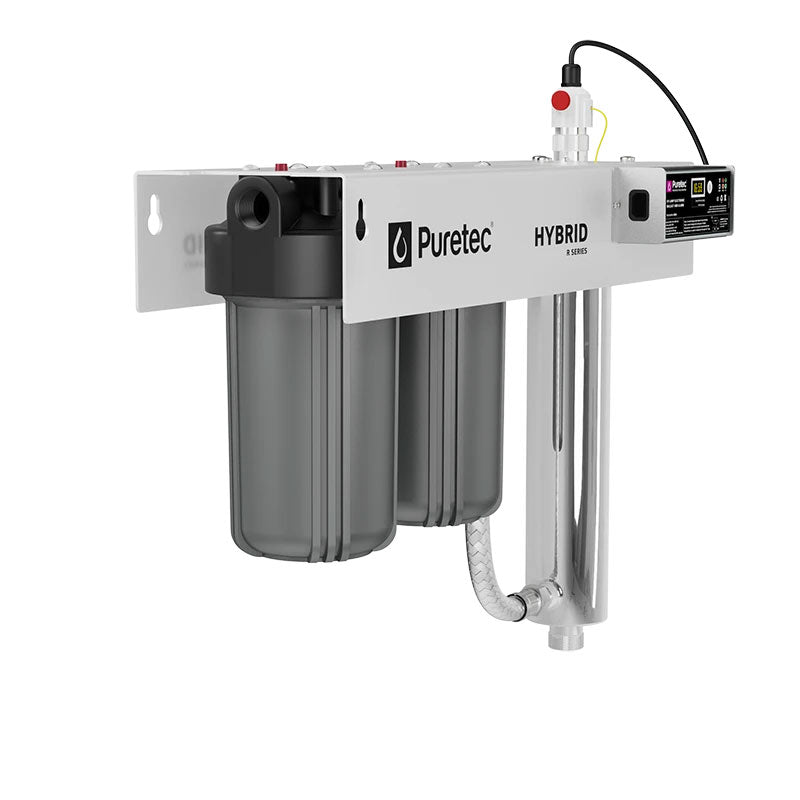

Puretec Hybrid-R3 Filtration and UV All in One Unit Water Purification

Puretec Hybrid-R3 Filtration and UV All in One Unit Water Purification

• Dual stage filtration plus UV protection, reversible mounting bracket, 75 Lpm, 1” connection

This water purification system reduces sediment, silt, sludge, dirt, rust, coarse & fine particles and is highly effective in eliminating bacteria and parasites in your water.

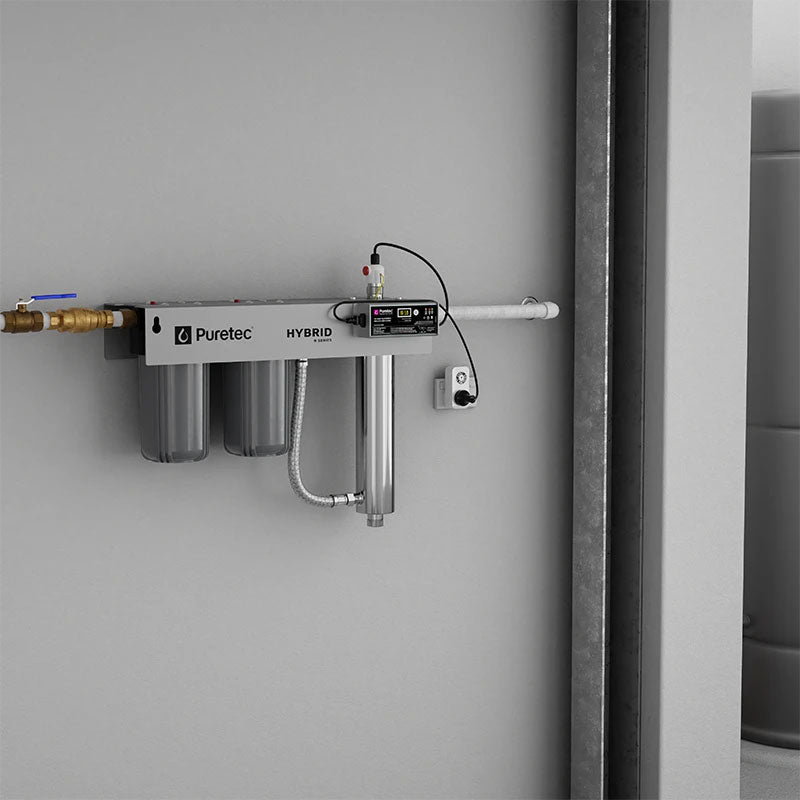

Suited to small households, these water filter systems are designed for both mains and rainwater supply. This unit can be installed from left to right or right to left depending on the installation requirements.

• Dual filtration for extra sediment capacity.
• Filtration and ultraviolet all in one unit.
• Reversible aluminium mounting bracket for easy installation.
• Made from lightweight, durable materials.
• Equipped with a lamp count-down timer and alarm.
• Anti-corrosion construction.
• 1” connections.
• Quick and easy plug-and-play installation.

SPECIFICATIONS

Ordering Code: HYBRID-R3
Replacement Parts and Cartridges:
Stage 1 filtration: PL20MP1
Stage 2 filtration: PX01MP1
UV Lamp: RL6
Flow rate @40mJ/cm²: 54 Lpm
Flow rate @30mJ/cm²: 70 Lpm
Flow rate @16mJ/cm²: 130 Lpm
Connection: 1" BSP [25mm]
Warranty: 3 years^

Important Note: Use only genuine Puretec replacement cartridges. Flow rate @30mJ/cm² is the industry standard for drinking water. Puretec Hybrid UV systems are designed for common rainwater. The effectiveness of a UV system is dependent on the clarity of water present. If you are unsure of the clarity of your water Puretec can arrange a UVT test to verify that no further filtration is required before the UV. Contact Puretec on 1300 140 140 (AU) or 0800 130 140 (NZ) for further information on this.
