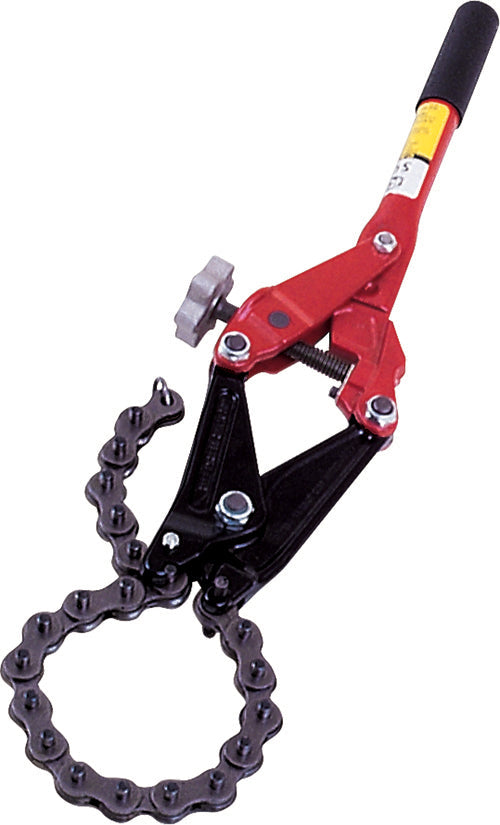

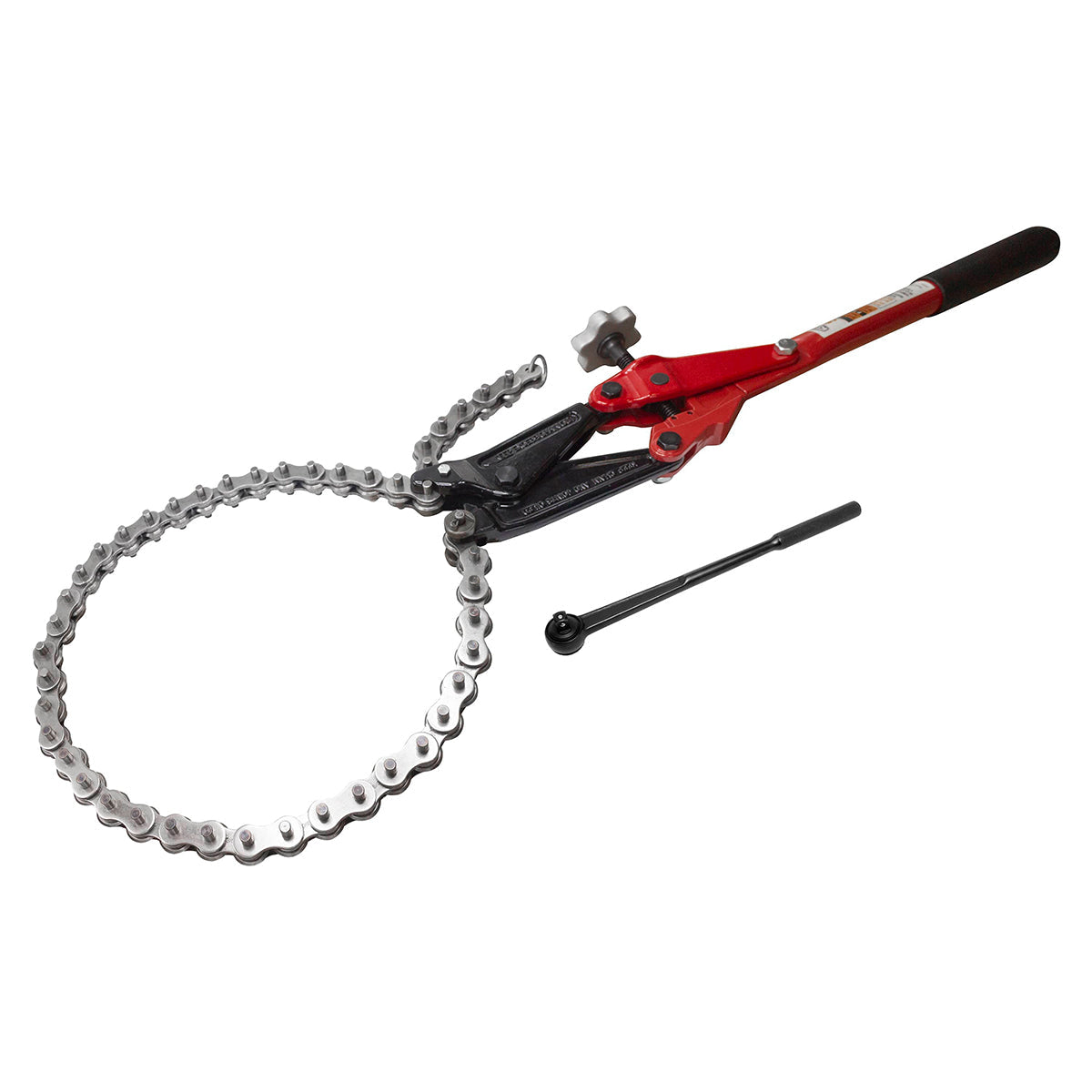

Ratchet Snap Soil Pipe Cutter

Snap Type Cutter (Manual) - Ratchet Soil Pipe Cutter 2"- 8" (50-212mm)

The captured screw makes the SC49 close-quarter soil pipe cutters both easy to use and less costly. The screw does not have to be manipulated into place which reduces screw and cutter breakage.

The fastest way to cut cast iron soil pipe, clay pipe, and small diameter concrete pipe is with a chain soil pipe cutter. Great for gray water applications! Reed has improved the original design by providing stronger jaws and more durable adjusting screws which are interchangeable with the original tools. Reed soil pipe cutters are available in a single stroke SC59 model and a ratcheting SC49 model for close quarter work. Multiple use 1/2in ratchet wrench ships with SC49 models. No-Hub Roller Kit is standard on all models. For cutting ductile iron pipe, Reed recomends Hinged cutters or Low Clearance Rotary cutters

Maximum Pipe Capacities

(determined by maximum pressure applied):

• Extra heavy cast iron soil pipe  2-4in (62-125 mm)
• Service weight cast iron soil pipe  2-8in (62-212 mm)
• Concrete pipe   4-6in (125-160 mm)
• No-Hub cast iron soil pipe  1 1/2in-8in (38-212 mm)
• Clay pipe   2-12in (62-317 mm)

Extension chains available to increase capacity of smaller cutters.
