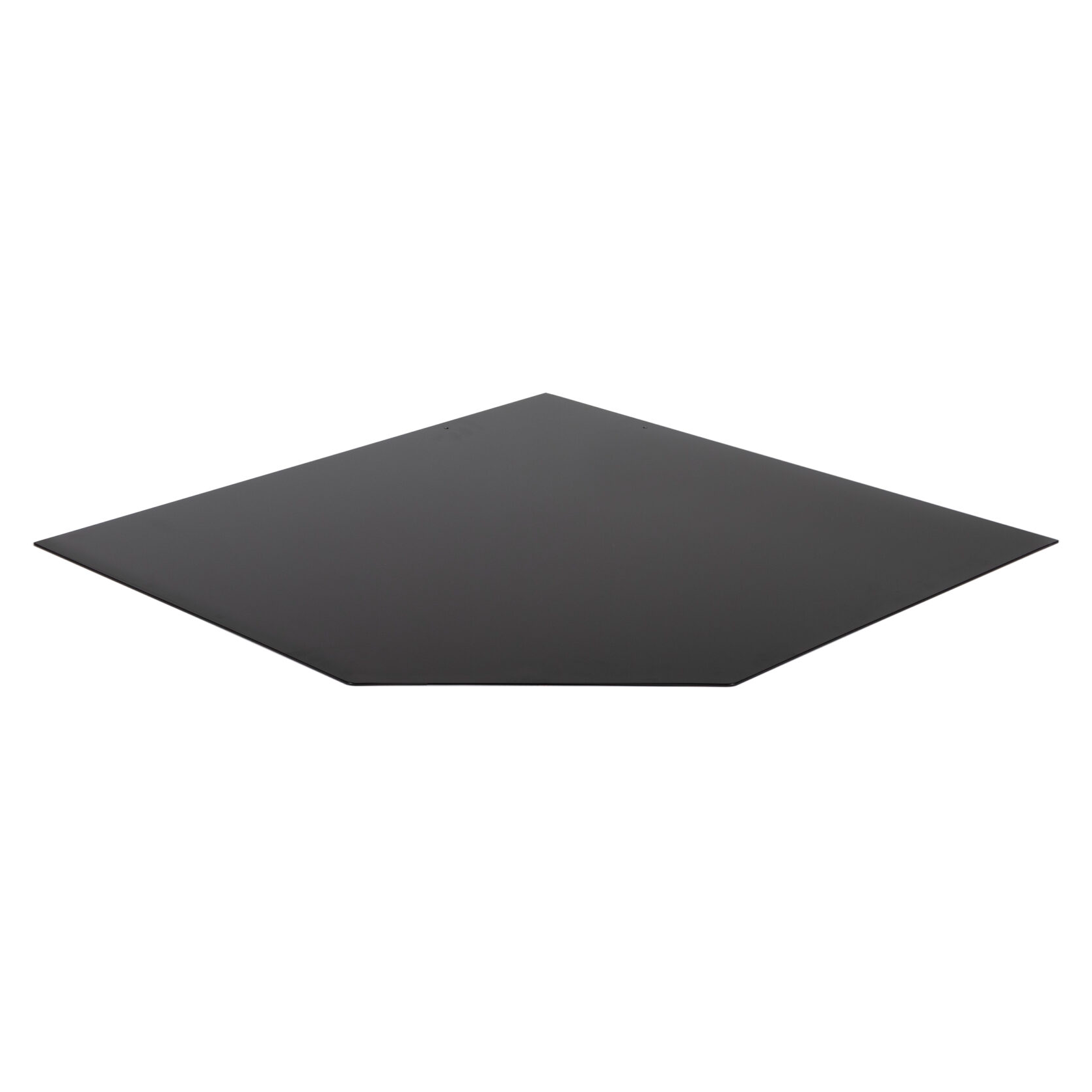

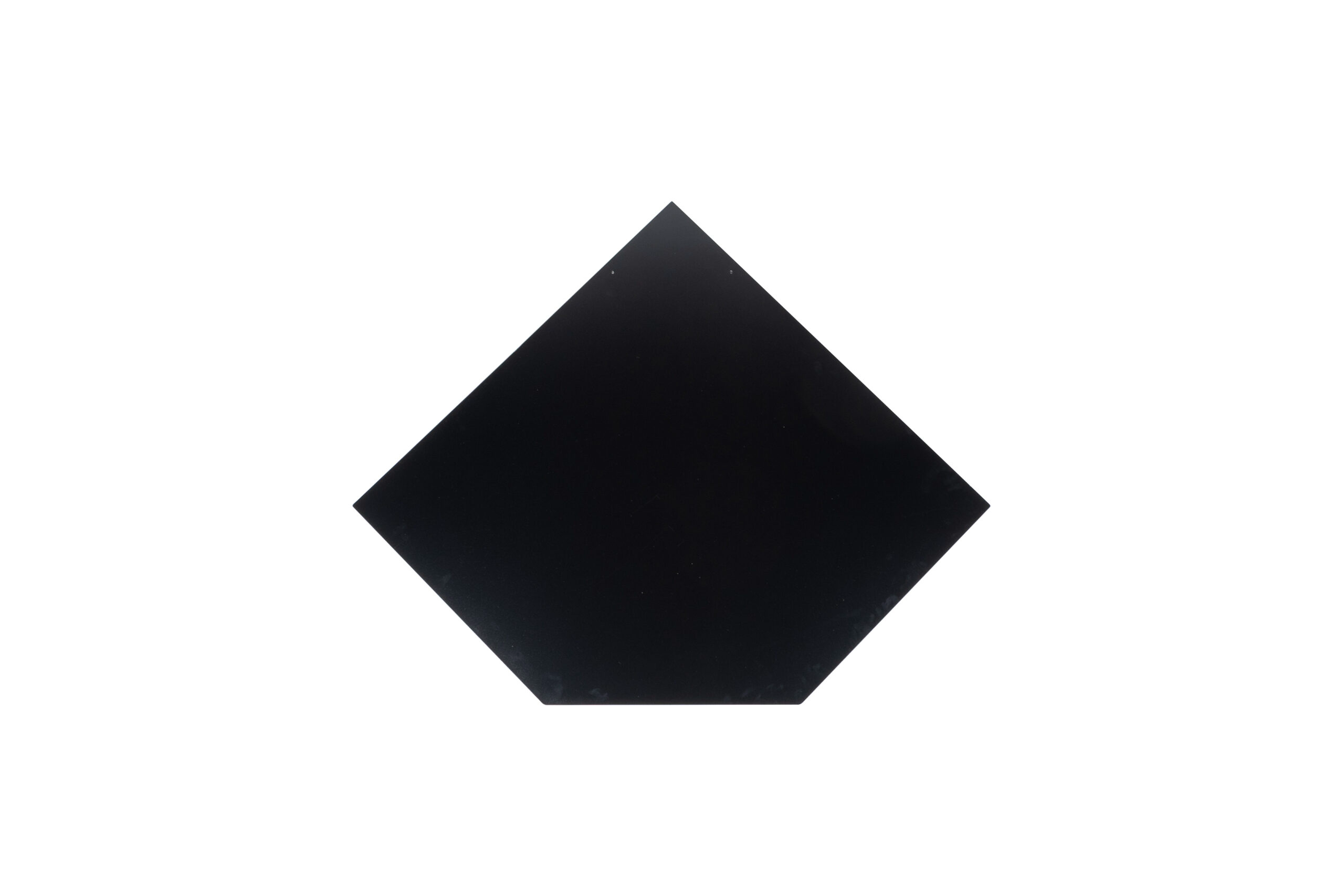

Metro Slimline 1000 Corner Floor Protector
Pioneer floor protectors can be laid on top of any flooring substrate for quick and easy installation. Slimline floor protectors are manufactured in lightweight aluminium for ease of handling and installation. Finished in textured black powder coat with a low profile 3mm thickness. Available in other wall and corner sizes. The overall dimensions constitute an ‘Ash Floor Protector’ as the Slimline alloy is non-combustible material.

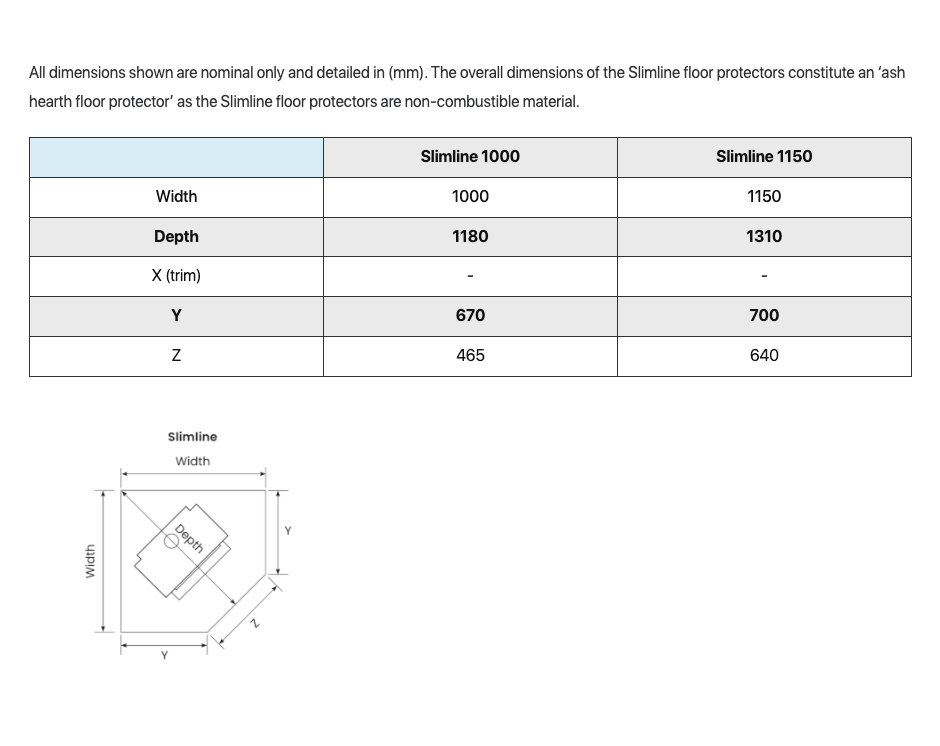

Width | 1000mm |
---|---|
Depth | 1180mm |
X Dimension (trim) | – |
Y Dimension | 670mm |
Z Dimension | 465mm |
Thickness | 3mm |
Note: All measurements detailed are in millimetres (mm). The dimensions shown are nominal only. The following Metro models can be installed on this floor protector. All suitable floor protector indications below are inclusive of a 10mm skirting board allowance.
Clean air models:
Tiny Ped / Tiny Rad / Tiny Rad Woody / Wee Rad – Leg2 / Wee Ped1 / Ambie One
LTD rural models:
LTD Wee Rad
Leg 1 - This model must have the Pioneer flue shield side extensions fitted to be able to be installed onto this size floor protector.
Leg 2 - This model must have the Pioneer corner wing shields fitted to be able to be installed onto this size floor protector.

About Metro
Turfrey has a proud long standing partnership with Metro Fires, supplying Kiwi-made wood burners designed for New Zealand conditions. Metro’s comprehensive range includes clean air approved, ultra-low emission, and rural models, all built with advanced clean-burning technology to deliver maximum heat with minimal emissions.
When you choose Metro from Turfrey, you’re not just getting a fire — you’re investing in a warmer, drier, and healthier home, backed by a 10-year firebox warranty and the trusted service of one of NZ’s leading heating specialists.
