Louvre Roof System Wall Mount 6m x 4m Charcoal

In Stock | Ships direct from NZ supplier

$6,599.00
  • Payment Options
    We have a number of payment options available to you View Details

Product details

Louvre Roof System Wall Mount 6m x 4m – Charcoal

Turn your outdoor area into a stylish, all-weather living space with the Louvre Roof Wall Mount System 6m x 4m in Charcoal. Perfect for tight spaces or creating seamless indoor/outdoor flow, this premium system instantly adds comfort, value, and usability to your home.

With the easy-to-use crank system, you can smoothly adjust each bank of louvres to control light and airflow:

  • β˜€οΈ Open fully on perfect summer days

  • 🌦 Close when the weather turns β€” the integrated gutters and hidden downpipes keep everything dry without messy pipework

The charcoal powder-coated finish and sleek, modern design complement any deck, patio, or poolside area. This kit includes a wall-mount bracket and 75mm coach screws for timber installations, and can be mounted on almost any load-bearing flat surface with the right fasteners.

Built tough for New Zealand conditions, theΒ aluminium frame, galvanised fittings, and durable louvres are backed by a 5-year warranty. The system is low-maintenance, easy to clean, and designed to last.

Key Features

  • Large 6m x 4m size – spacious coverage for outdoor living

  • Charcoal powder-coat finish – modern, sleek, and stylish

  • Independent crank control – adjust shade on each side separately

  • All-weather performance – hidden guttering & downpipes for a clean look

  • DIY-friendly installation – wall-mount bracket & screws included

  • Durable construction – strong aluminium frame with galvanised fittings

  • 5 Year Warranty – peace of mind and lasting performance

Transform your deck, patio, or pool area into a year-round outdoor living room with the Louvre Roof Wall Mount 6x4m in Charcoal – the smart way to enjoy Kiwi summers and beyond.

Features & Specifications

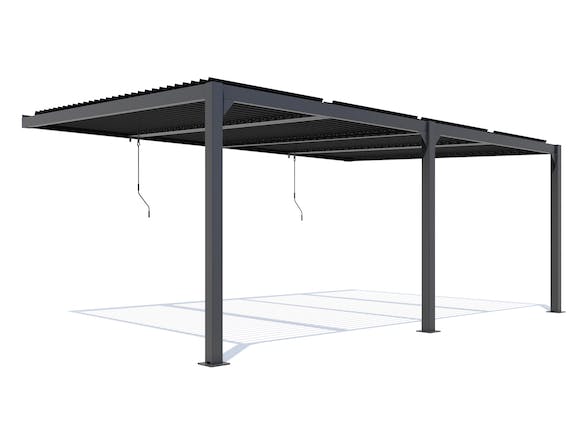

• Wall-mounted 6m x 4m louvre roof system

• Create your ideal all-weather outdoor living space
• Twin, adjustable louvre banks
• Fully-integrated gutter system with internal downpipes
• Gear crank system for infinite adjustment
• Rust-proof powder coated aluminium construction
• Sleek charcoal finish & architectural style looks amazing anywhere
• Straightforward DIY assembly
• 5 Year Trade Tested Warranty

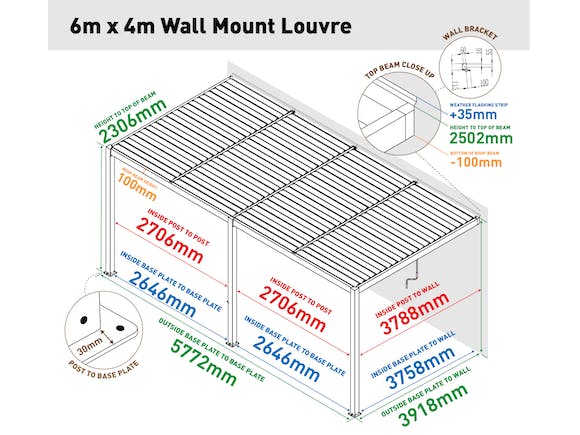

Total dimensions: W 5.772m x D 3.918m x H 2.3m
Total height of wall installation: 250.2cm
Frame material: Aluminium, 2.0mm (beam) / 1.6mm (post)
Louvre panel material: Aluminium, 1.4mm
Top beam dimensions (each): W 45mm (horizontal) x H 120mm (vertical)
Colour: Charcoal powder coat
Post dimensions: 230cm x 10cm x 10cm
Louvre dimensions: L 185cm x W 14.5cm
Supplied fixing: M8 x 75mm

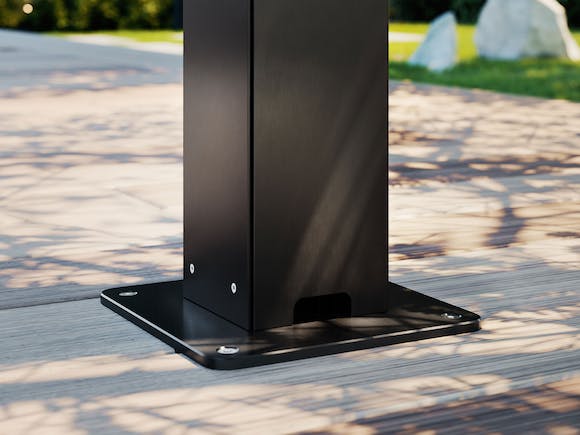

Ground plate dimensions: 16cm x 16cm
Weight net/gross: 246.5/309.7kg

Carton dimensions: Carton 1 – 261cm x 24cm x 25cm, 26kg. Carton 2 – 287cm x 24cm x 18cm, 32kg. Carton 3 - 386cm x 29m x 28cm, 69kg. Carton 4 - 386cm x 16cm x 15cm, 21.5kg. Carton 5 - 145cm x 36cm x 24cm, 40kg. Carton 6 - 145cm x 36cm x 24cm, 40kg. Carton 7 - 145cm x 36cm x 24cm, 40kg. Carton 8 - 145cm x 36cm x 24cm, 40kg.
