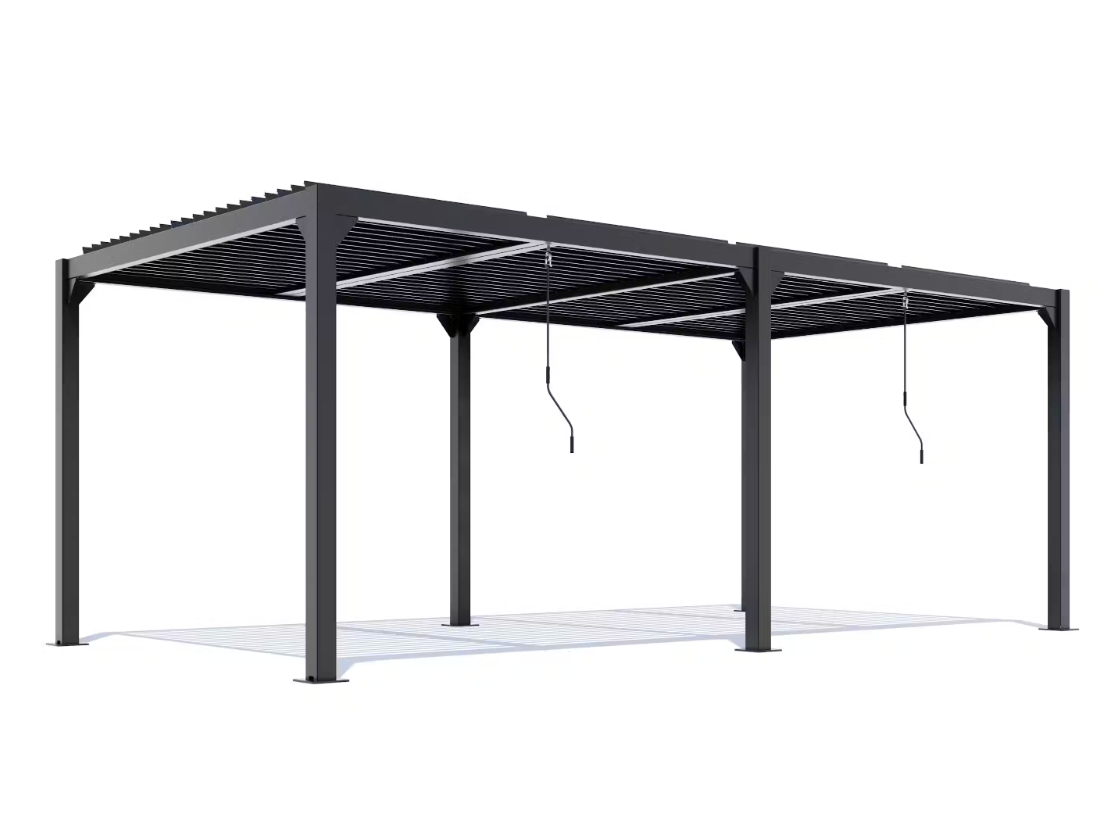

Louvre Roof System 6m x 3m Charcoal
Create the stunning, multi-use outdoor area you’ve always wanted with this sleek, architectural louvre roof.
The integrated crank system allows you to easily and smoothly open or adjust the louvres. Open it right up and enjoy that perfect Kiwi summers day or keep it closed when the weather is changeable - the integrated gutters and internal downpipes make this roof system truly all-weather.
The crisp charcoal powder coat finish and contemporary style blends well with most outdoor areas, while the straightforward instructions make this a great DIY upgrade. The built-in gutters feature hidden outlets through the foot of each pole, letting the water disperse without the need for ugly pipework everywhere.
With its strong aluminium frame, louvres and galvanised fittings this roof system is built to last, while being easy to clean and maintain.
Each bank of louvres is operated by a separate gear crank system, so you really can tailor the shade to your needs. Keep one half cool and shady, then open the other side to vent the BBQ.
This cost-efficient free-standing system is the perfect way to infuse architectural flair to decks, patios, pool areas, or any space you wish to transform into an elegant outdoor area.
• Free-standing 6m x 3m louvre roof system perfect for larger areas
• Create your ideal all-weather outdoor living space
• Twin, adjustable louvre banks
• Fully-integrated gutter system with internal downpipes
• Gear crank system for infinite adjustment
• Rust-proof powder coated aluminium construction
• Sleek charcoal finish & architectural style looks amazing anywhere
• Straightforward DIY assembly
• 5 Year Warranty
Total dimensions: W 5.780m x D 2.966m x H 2.3m
Frame material: Aluminium, 2.0mm (post) / 1.5mm (beam)
Louvre panel material: Aluminium, 1.4mm
Top beam dimensions (each): W 45mm (horizontal) x H 120mm (vertical)
Colour: Charcoal powder coat
Post dimensions: 230cm x 10cm x 10cm, 2.0mm aluminium
Louvre dimensions: L 135.4cm x W 14.5cm

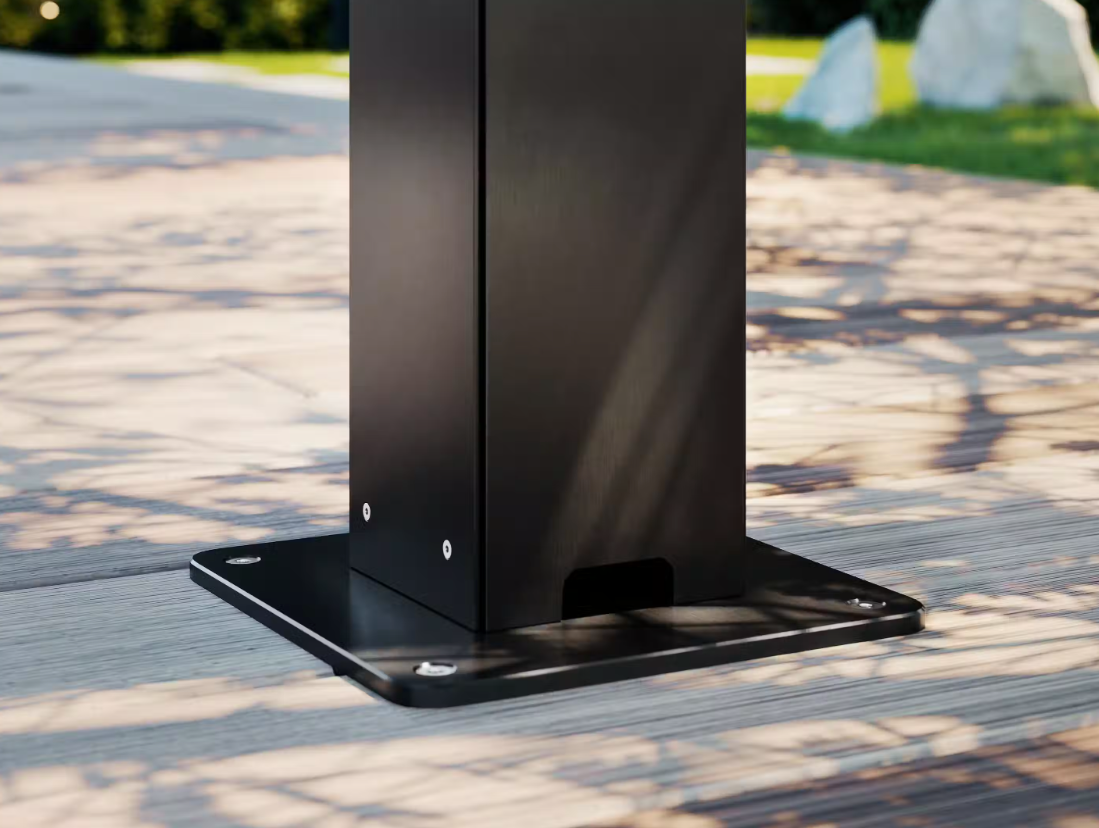

Ground plate dimensions: 16cm x 16cm
Weight net/gross: 213.4/241.3kg
Carton dimensions: Carton 1 – 263cm x 36cm x 26cm, 41kg.
Carton 2 – 289cm x 25cm x 19cm, 32kg.
Carton 3 - 289cm x 30cm x 29 cm, 53.3kg.
Carton 4 - 289cm x 20cm x 19 cm, 19kg.
Carton 5 - 146cm x 38cm x 34 cm, 48kg.
Carton 6 - 146cm x 38cm x 34 cm, 48kg.
