Herschel Krystal

Herschel Krystal

Unique in the market, the Herschel Krystal infrared panel heater is revolutionary in design, efficiency, performance and comfort. Constructed using specialised microcrystal ceramic glass and Herschel’s innovative COSIX© Cell infrared heating technology, Krystal offers a highly attractive, sleek and compact solution that can be neatly recessed into ceilings to ensure a contemporary, seamless finish for any interior.

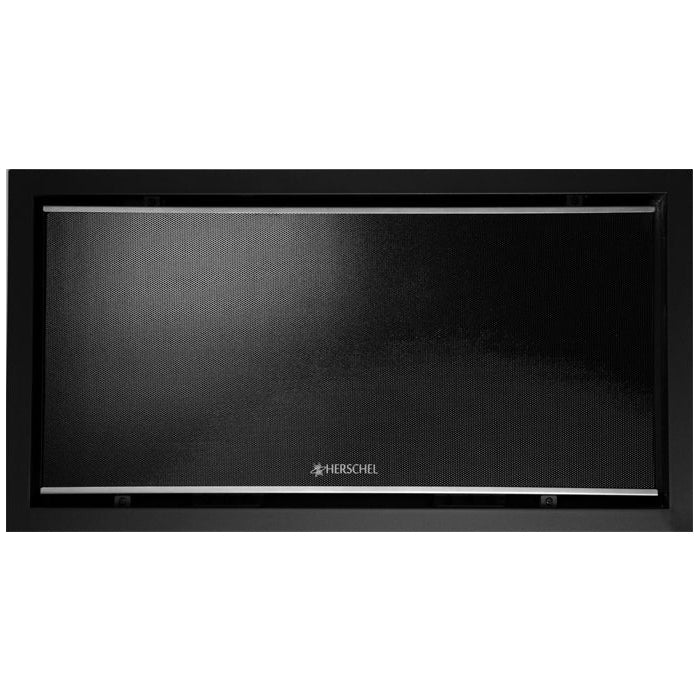

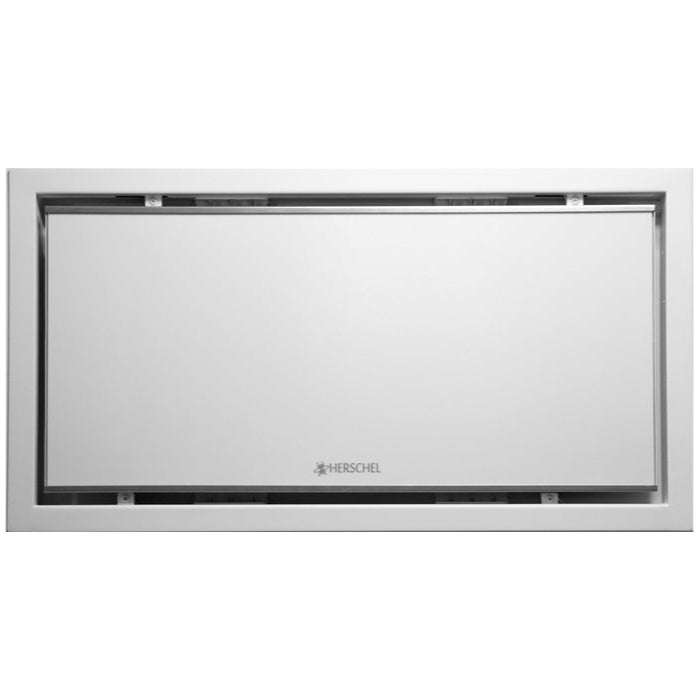

At less than a quarter of the size of most far infrared panel heaters but offering similar power output, Krystal’s big advantages are in its space-saving and fast warm-up times.  The Krystal Black glass panel is available in either 600W or 1000W in a 27 x 57cm unit. This is also available in white.

The high temperature Krystal heater provides fast warm-ups, ideal for comfortably heating both domestic properties or commercial heating applications. The Krystal is designed for ceiling mounting in rooms and can also be wall mounted in large spaces.

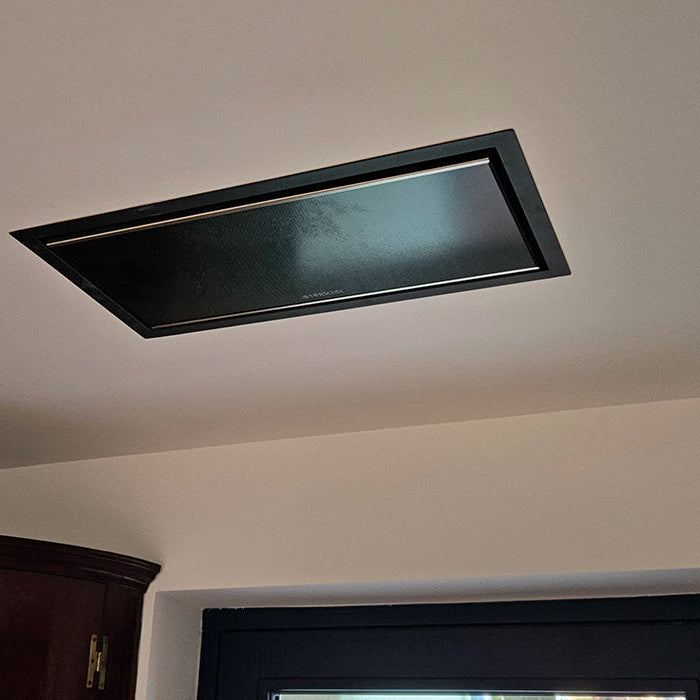

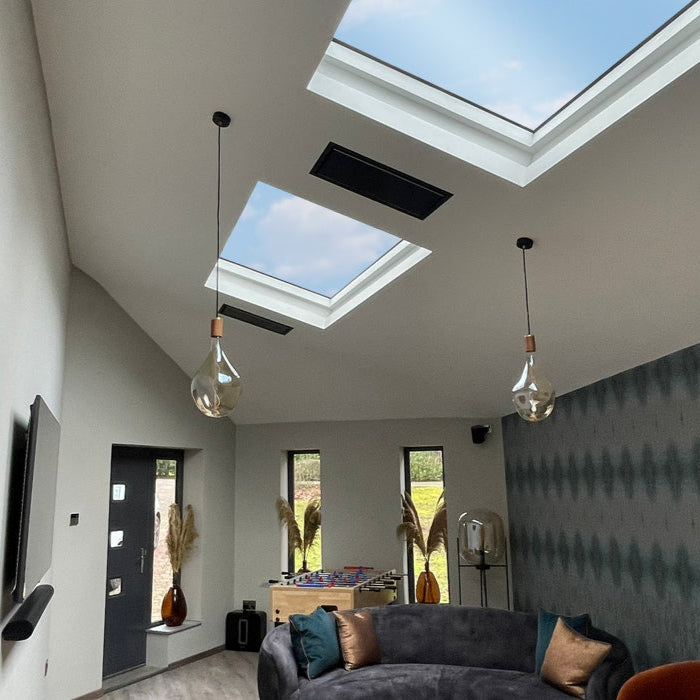

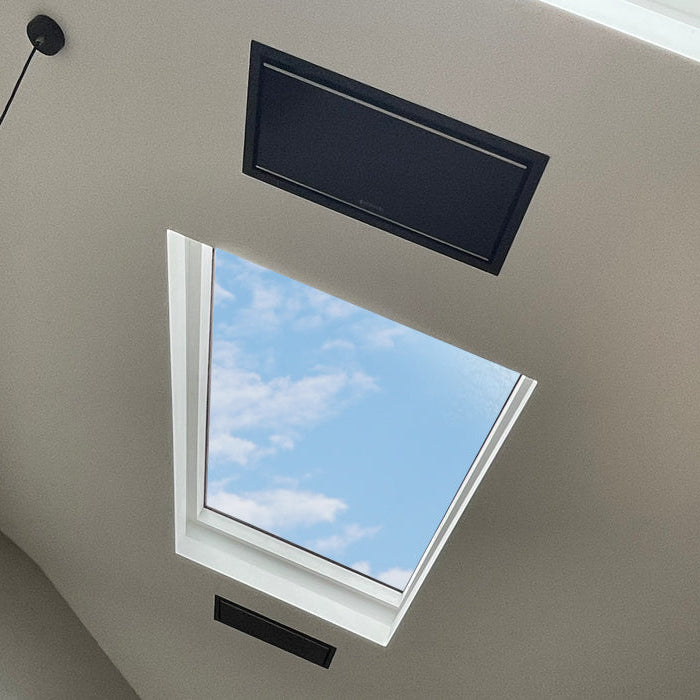

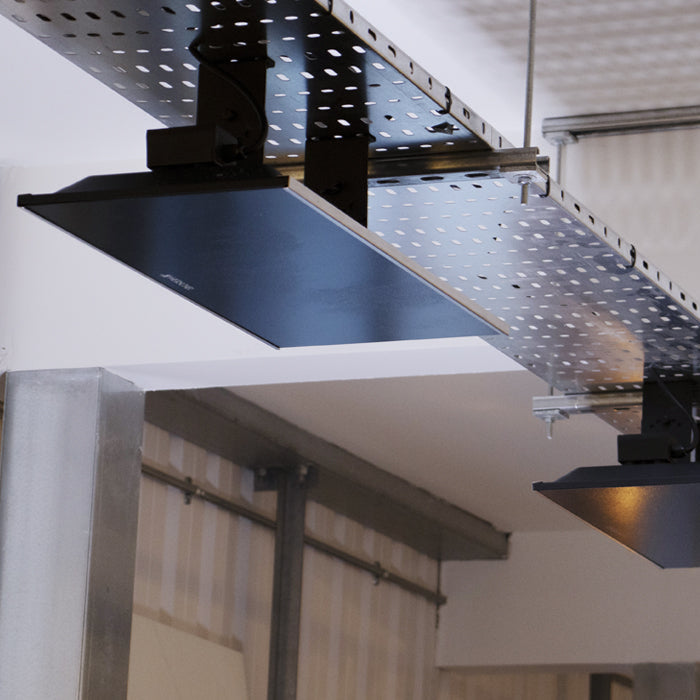

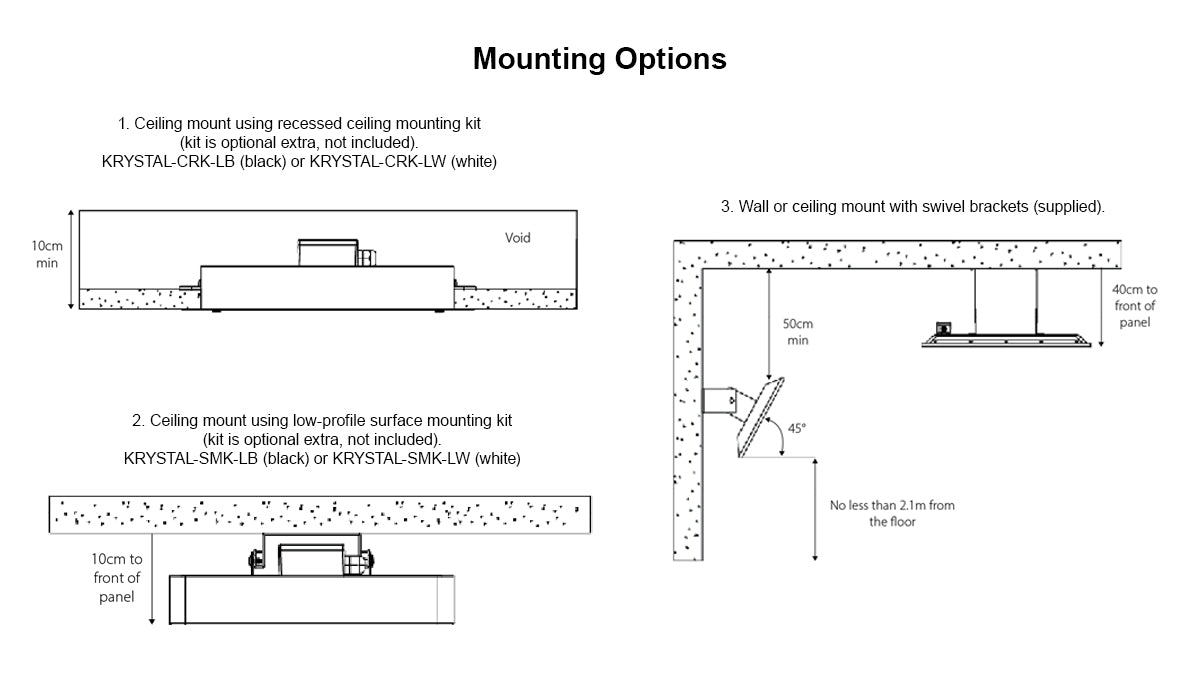

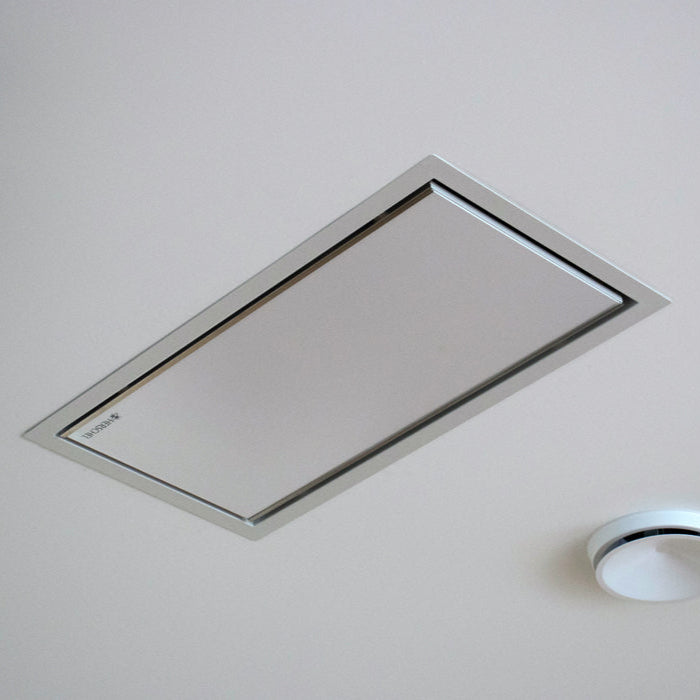

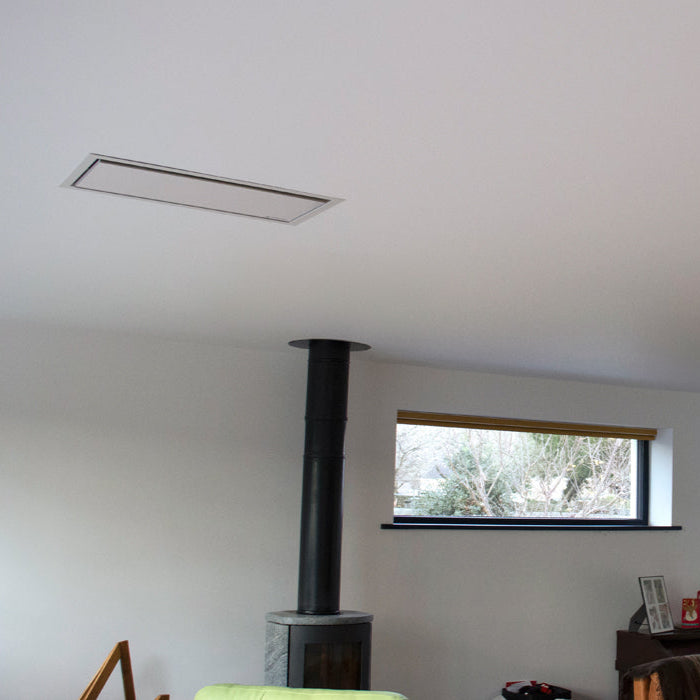

For a designer flush finish, the Krystal recessed ceiling mounting kit can be purchased (separately) allowing Krystal to be recessed into plasterboard ceilings that have a void. For solid ceilings, the low profile surface mounting kit allows Krystal to be mounted discreetly onto the ceiling. The surface mounting kit is also an optional extra. (Wall mounting swivel brackets are supplied, as standard). The mounting options can be seen in the datasheet and gallery image.

Control of the Herschel Krystal infrared panel heater is via hard wiring to one of Herschel’s iQ range of thermostats (purchased separately). Due to its fast warm-up times, Krystal also works exceptionally well with Herschel’s PIR sensor, so you can fine-tune your energy use to set infrequently used rooms to a lower temperature and boost the power only when you’re in them.

Krystal has a high surface temperature and must be installed out of reach. Minimum ceiling heights of 2.4m are advised for ceiling mounting. Minimum 2.1m mounting height is required for wall mounting.
Professional installation by an electrician is required.

Please consider your ceiling mounting preference when ordering. Note swivel brackets are supplied, the alternative mounting brackets require additional kits to be purchased.

Technical Specifications

Heater Type: Fixed electric high temperature infrared heater
Surface: Microcrystal Glass
Rear Case: Steel
Surface Temperature: 280 - 350°C
Cable Length: 1.9m
Plug: No Plug
Voltage: 220 - 240V 50 Hz
Protection Class: IP44
Installation: Wall or ceiling mounted
Heating Element: Herschel COSIX © Cell Technology
Warm-up Time: <10 Minutes
Useful Wavelength: 3 - 10µm
