Grey Water Macerator Pump - 400

Macerator Sanitary Pump 400

The Macerator Sanitary Pump 400 is simply a tank which is gravity fed from your toilet, washing machine, shower etc. with a built in pressure switch which detects the incoming waste and starts a pump combined with cutting blades. This reduces the effluent to an easy to pump fluid which is then pumped along small diameter pumps into the drains. A non-return valve is fitted as standard so enabling the unit to pump up to 7m vertically.

Using this pump you can still add a bathroom to basements, garage conversions, granny flats, loft conversions, en-suite bathrooms, heritage sites and rooms with concrete slab floors even where there are no standard drains. The pump can either be installed behind the wall or exposed. With three inlets, this macerator 400 can easily deal with a wash basin, bidet and a power shower.

Features:
• Silent operation
• Powerful yet quiet motor
• Lower power consumption
• Fully automatic wastewater detection
• Compact, neat and unobtrusive
• Manual mode option
• Stainless-steel impeller blades
• Three inlets for connections to hand basin, shower etc.
• Non-return valve
• Superior quality seals

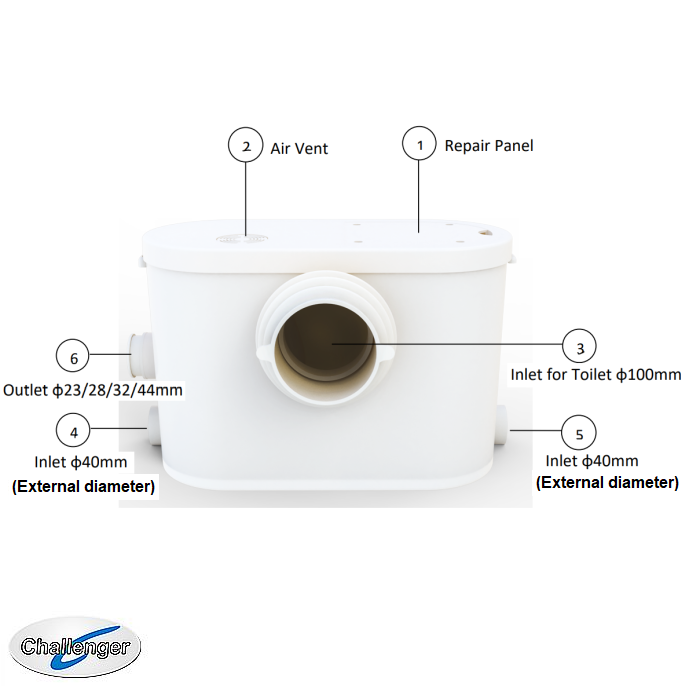

Please note the inlet pipe sizing is of 40mm EXTERNAL DIAMETER, NOT THE INTERNAL DIAMETER

Specifications:
• Power Supply: 220-240V AC, 50Hz
• Watts (consumption): 400W
• Flow rate at max head L/min: 145L/min
• Discharge Pipe Diameter: 23mm/28mm/32mm/44mm
• Height of maximum discharge: 7 metres
• Length of maximum discharge: 70 metres
• Weight: 9kg

Item is brand new. Guaranteed 12-month warranty

Part No. 46903
