Devan 5,000L Extra Heavy Duty Tank

Devan 5,000L Extra Heavy Duty Tank

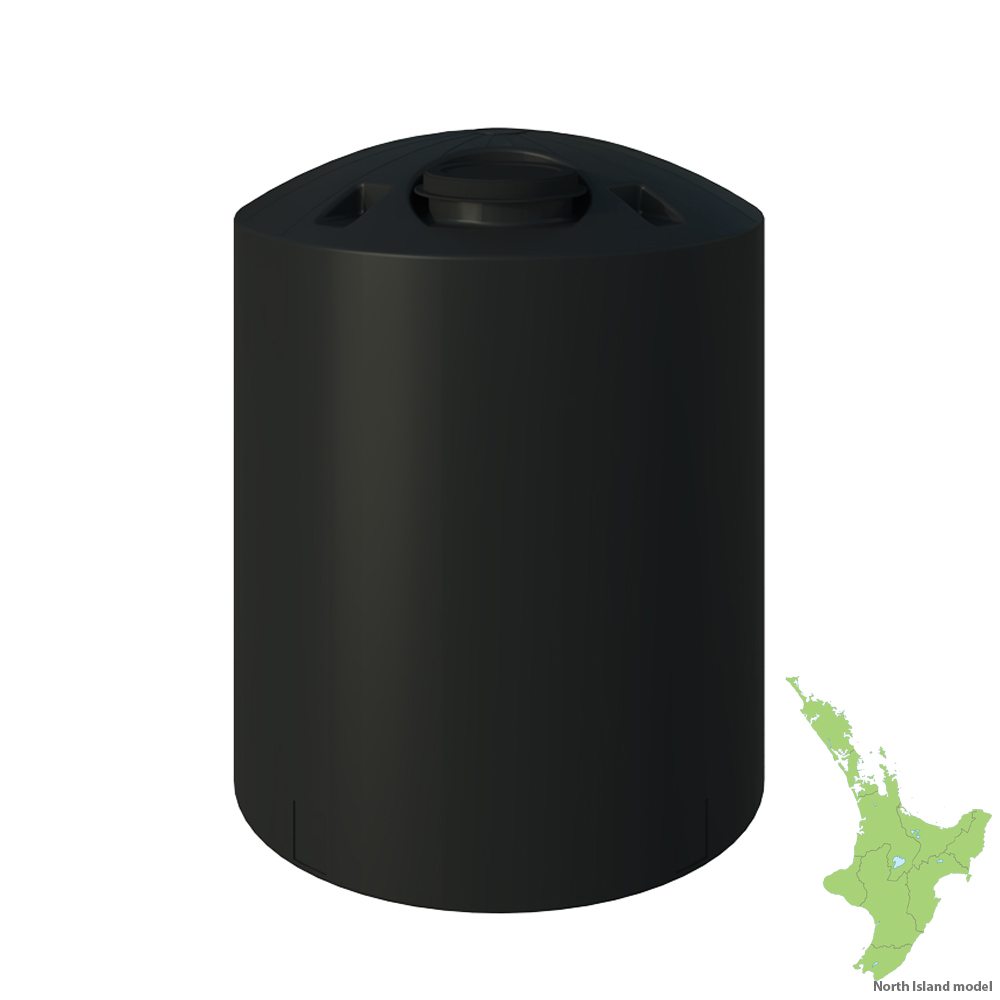

5,500 litres (1,200gallons) – NORTH ISLAND ONLY

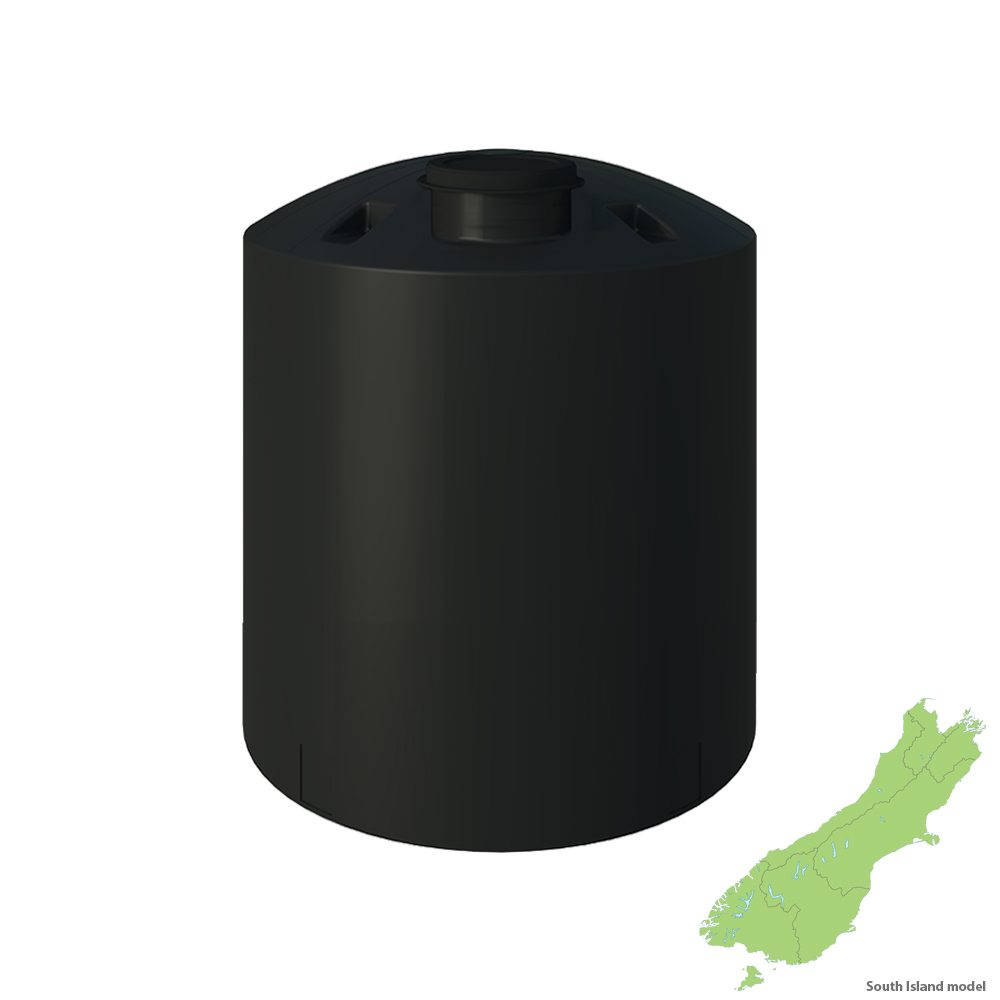

5,000 litres (1,100 gallons) – SOUTH ISLAND ONLY

North Island model Width: 1.9 metres Height: 2.3 metres Outlet(s): 1 x 50mm (2 inch) brass BSP fittings
North Island model Width: 1.9 metres Height: 1.9 metres Outlet(s): 1 x 50mm (2 inch) brass BSP fittings

• Full 10 Year Warranty (not a pro-rata)
• Bury up to 1500mm deep with clean backfill.
• Super tough dome
• Custom flanged outlets available up to 200mm (extra charges and conditions apply)

Please note that the colours represented are the best match possible within screen and print variations. As colours may vary, please contact us direct if you require a free colour swatch sample.

Code: TT05X
Empty weight: North Island: 150kg, South Island: 150kg
Specific gravity – max1.5
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
Manhole opening size: 435mm (located at 6 o’clock)
Diameter: 1.9m (North and South island)
Overall height: North Island: 2.3m, South Island 2.0m
Overflow height: North Island: 2m, South Island: 1.8m
Overflow panels: 3 off ( 5, 7 & 12 o’clock)
Height to dome part line: North Island: 1.94m
Outlet size: 50mm BSP (1 off)
Outlet – base to centre line: North Island: 110mm
Maximum no. of moulded in outlets: North Island: 3
Outlet location(s) – standard: North Island: 12 o’clock, South Island: 7 o’clock
Other available locations – non standard 5 & 7 o’clock
Lifting eyes: North Island: none, South Island: 3 & 9 o’clock
