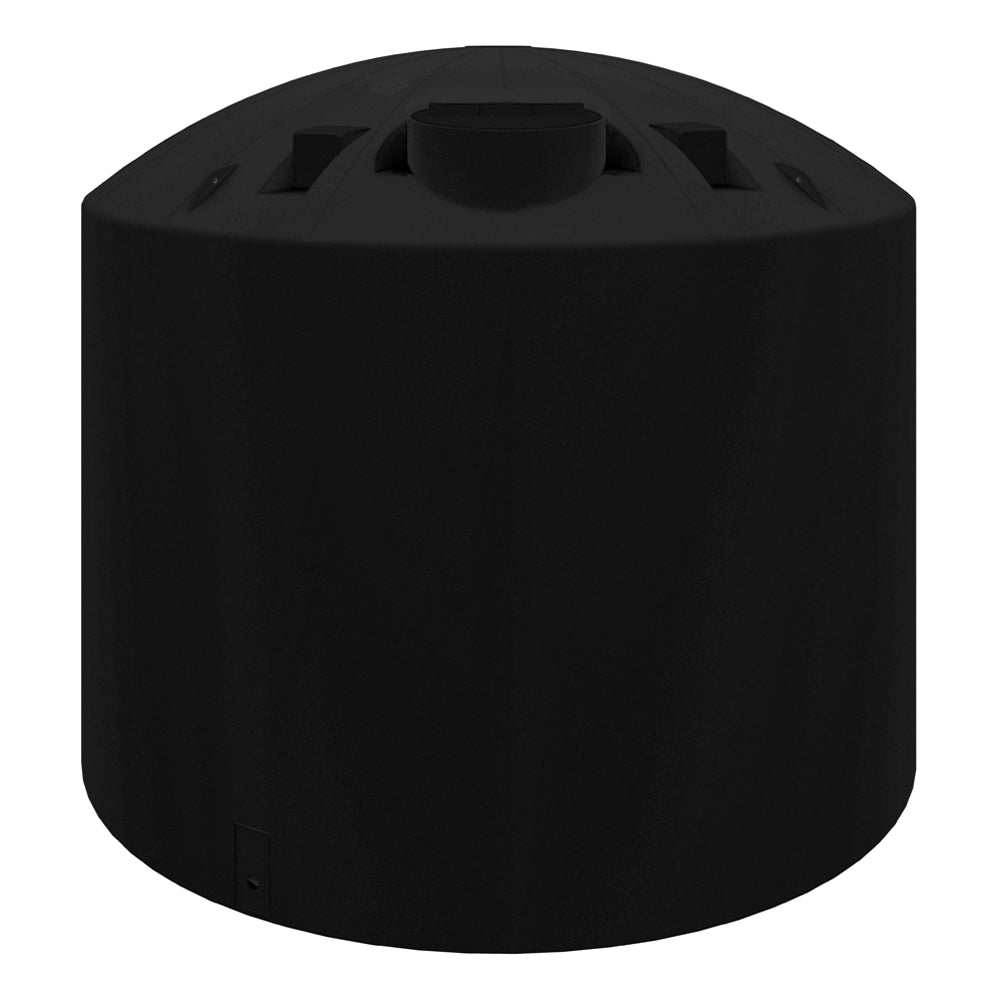

Devan 25,000L Extra Heavy Duty Water Tank

Devan 25,000L Extra Heavy Duty Water Tank

25,000 litres (5,500 gallons) Extra Heavy Duty industrial tank (max Specific gravity 1.5)

Width: 3.5 metres Height: 3.0 metres Outlet(s): 2 x 50mm (2 inch) brass BSP fittings

• Full 10 Year Warranty (not a pro-rata)
• Bury up to 1500mm deep with clean backfill.
• Super tough dome
• 11 colours Click on specification or download for more information
• Moulded outlets up to 100mm (extra charges apply)
• Custom flanged outlets available up to 300mm (extra charges and conditions apply)

Please note that the colours represented are the best match possible within screen and print variations. As colours may vary, please contact us direct if you require a free colour swatch sample.

Code: TT25X
Empty weight: 575kg
Specific gravity – max: 1.5
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
Manhole size: 600mm (located at 6 o’clock)
Diameter: 3.5m
Overall height: 3m
Bottom of Overflow Panel: 2.5m
Overflow panels: 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: 2.29m
Outlet size: 50mm BSP (2 off)
Outlet – base to centre line: 135mm
Maximum no. of moulded in outlets: 4
Outlet location(s) – standard: 1 & 7 o’clock
Other available locations – non standard: 5 & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
