Devan 15,000L Extra Heavy Duty Water Tank

Devan 15,000L Extra Heavy Duty Water Tank

15,000 litres (3,300 gallons) Extra heavy duty industrial tank (max Specific gravity 1.5)

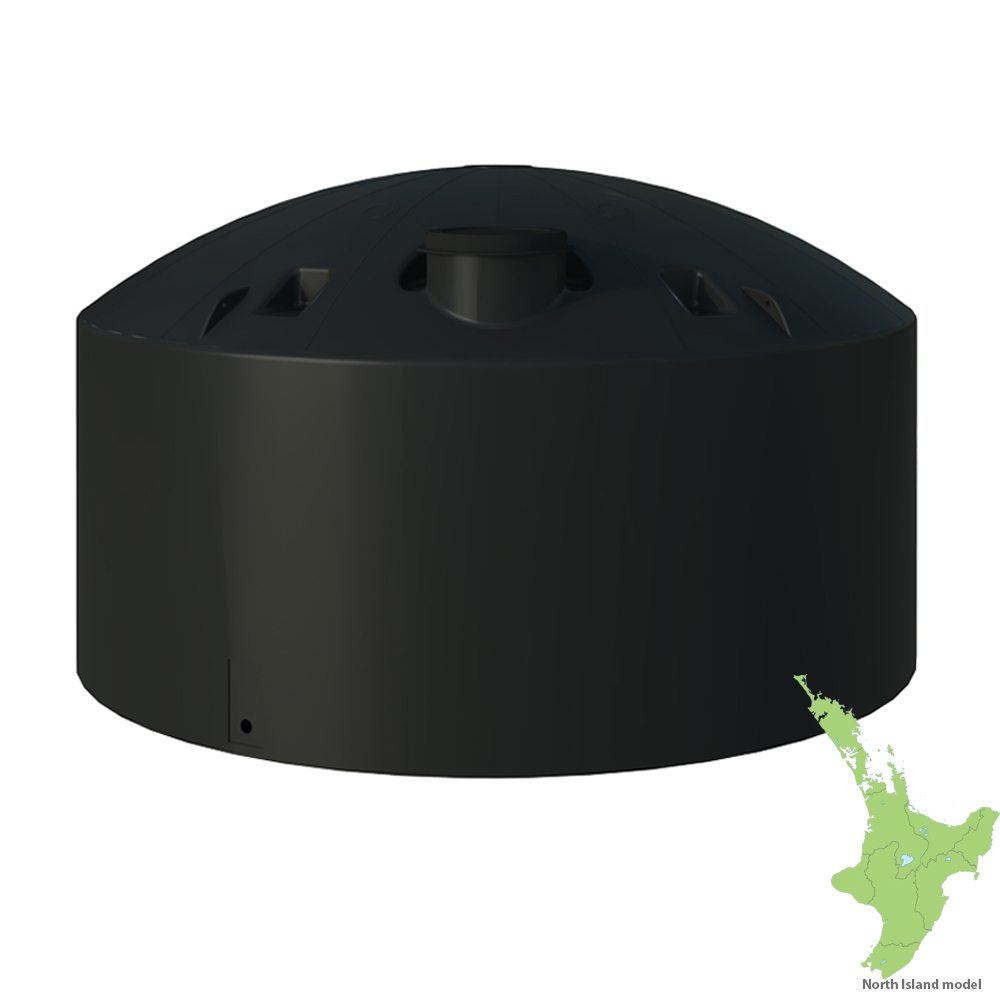

North Island Model: Width: 3.5 metres Height: 2.0 metres Outlet(s): 2 x 50mm (2 inch) brass BSP fittings

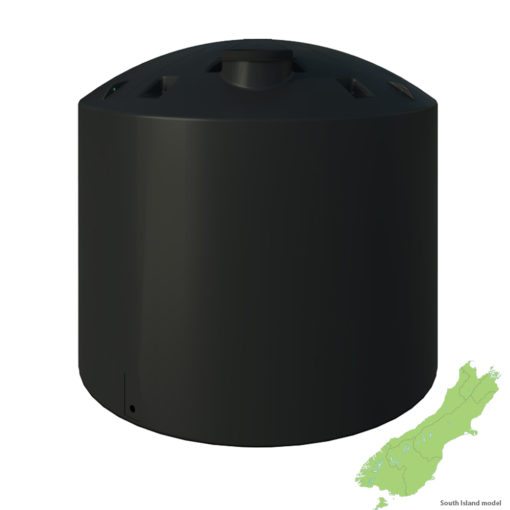

South Island Model: Width: 2.9 metres Height: 2.6 metres Outlet(s): 2 x 50mm (2 inch) brass BSP fittings

• Full 10 Year Warranty (not a pro-rata)
• Bury up to 1500mm deep with clean backfill.
• Super tough dome
• 11 colours Click on specification or download for more information
• Moulded outlets up to 100mm (extra charges apply)
• Custom flanged outlets available up to 300mm (extra charges and conditions apply)

Please note that the colours represented are the best match possible within screen and print variations. As colours may vary, please contact us direct if you require a free colour swatch sample.

Code: TT15X
Empty weight: North Island: 375kg South Island: 375kg
Specific gravity – max1.5
Max working temperature30ºC
Raw material typeMedium density polyethylene
Raw material standards: AS/NZS 2070 – Food contact requirements
AS/NZS4020:2005 – Potable drinking water
AS/NZS4766 Polyethylene storage tanks for water
Complying water tank standard: AS/NZS4766 Polyethylene storage tanks for water
Manhole opening size: 435mm (located at 6 o’clock)
Diameter: North Island: 3.5m, South Island: 2.9m
Overall height: North Island: 2m, South Island: 2.6m
Overflow height: North Island 1.6m, South Island: 2.2m
Overflow panels 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: North Island 1.4m, South Island: 2.1m
Outlet size: 50mm BSP 2 off
Outlet – base to centre line: North Island: 110mm, South Island: 120mm
Maximum no. of moulded in outlets: North Island: 3, South Island: 4
Outlet location(s) – standard 1 & 7 o’clock
Other available locations – non standard: North Island: 5 o’clock, South Island: 5 o’clock & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
